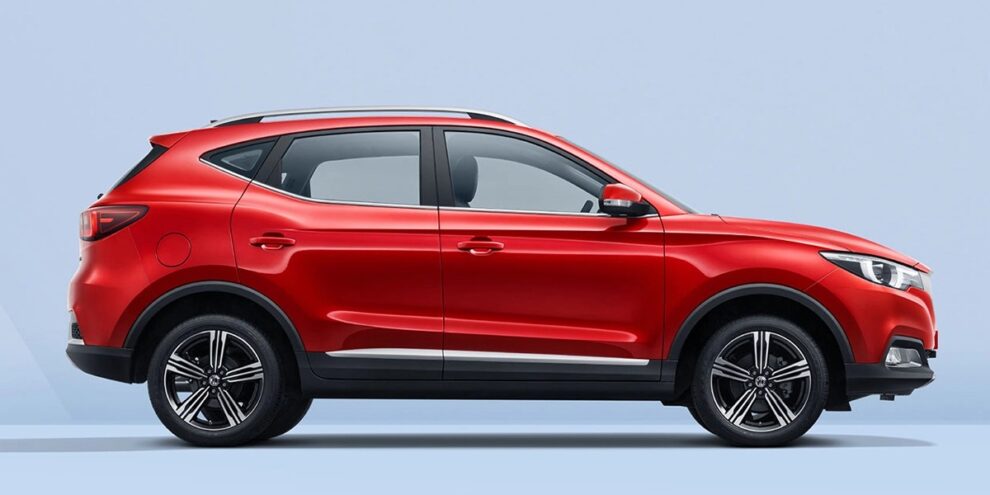

A P0172 – System Too Rich (Bank 1) fault on the 2017 MG ZS indicates that the Engine Control Module (ECM) has detected an excessively rich air-fuel mixture, meaning there is too much fuel or insufficient air entering the engine. On the four-cylinder MG ZS engine, Bank 1 refers to the only cylinder bank.

The ECM continuously monitors oxygen sensor feedback and fuel trim values to maintain the ideal air-fuel ratio. When fuel trim corrections reach their negative limit because the engine is consistently running rich, the ECM stores DTC P0172 and illuminates the Check Engine Light. A prolonged rich condition can increase fuel consumption, foul spark plugs, damage the catalytic converter, and raise exhaust emissions.

Symptoms

• Check Engine Light illuminated
• Diagnostic Trouble Code (DTC) P0172 stored
• Increased fuel consumption
• Rough or unstable idle
• Poor throttle response
• Engine hesitation during acceleration
• Reduced engine performance
• Black smoke from the exhaust under heavy acceleration
• Strong fuel smell from the exhaust
• Spark plugs fouled with carbon deposits
• Increased exhaust emissions
• Negative short-term and long-term fuel trim values

Possible Causes

The fault may be caused by leaking or restricted fuel injectors, excessive fuel pressure, a faulty fuel pressure regulator, a contaminated or faulty MAP sensor, a contaminated throttle body, a restricted air filter, intake air temperature sensor faults, a faulty engine coolant temperature sensor causing excessive fuel enrichment, an upstream oxygen sensor providing inaccurate feedback, EVAP purge valve faults allowing excessive fuel vapour into the intake, damaged wiring, poor electrical connections, Engine Control Module (ECM) faults, or CAN Bus communication issues affecting engine management. Although P0172 indicates a rich fuel mixture, the root cause is not always a faulty oxygen sensor.

Diagnosis

Diagnosis begins by confirming DTC P0172 using a professional diagnostic scan tool and reviewing freeze-frame data to determine the operating conditions when the fault occurred. Live data should then be analysed to evaluate short-term and long-term fuel trim values, upstream oxygen sensor activity, MAP sensor readings, engine coolant temperature, intake air temperature, and injector operating parameters. Any additional Diagnostic Trouble Codes related to the fuel system, ignition system, EVAP system, or oxygen sensors should be investigated alongside P0172.

A P0172 fault is not always caused by excessive fuel pressure or leaking injectors. Technicians typically inspect the air intake system for restrictions, verify the condition of the air filter, measure fuel pressure against OEM specifications, test injector leakage and balance, inspect the EVAP purge valve for incorrect operation, and verify the accuracy of the engine coolant temperature and MAP sensor signals. The upstream oxygen sensor circuit, wiring harness, electrical connectors, battery voltage, and ground integrity should also be tested before replacing any components.

If the intake and fuel delivery systems operate within specification, further diagnosis should include evaluation of the Engine Control Module, oxygen sensor performance, ignition system, catalytic converter efficiency, and CAN Bus communication network. Access to OEM wiring diagrams, connector pinouts, component locations, circuit descriptions, fuel pressure specifications, and manufacturer diagnostic flowcharts is essential for accurate fault isolation. Following the OEM troubleshooting workflow helps identify the true cause efficiently while avoiding unnecessary replacement of sensors, injectors, fuel system components, or the catalytic converter.
